HSL-1250 Heat Seal Lacquer
TECHNICAL DATA SHEET

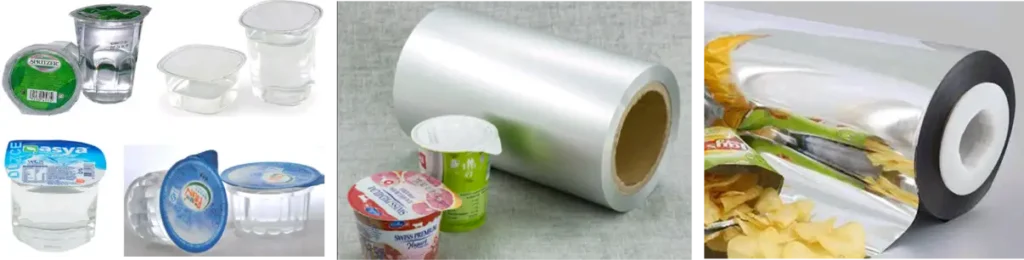

Solvent-based, universal heat seal lacquer for food packaging. Ideal for direct coating on aluminum, PET, PP, and paper lidding films. Suitable for sealing aluminum, PET, PS, PP, PVC, and PLA packaging. Especially recommended for disposable cups for water, soft drinks, and dairy products.
PRODUCT DESCRIPTION
Stellar HSL-1250 is a solvent-based heat seal lacquer formulated from a combination of special high-end polymers and additives. The product can be applied directly in a one-step coating process onto ALU, VPET, and paper films. It ensures reliable sealing on ALU, APET, PS, PP, PVC, VPLA, and paper cups, making it highly versatile for liquid and dry food packaging.
Property
Appearance
Solid Content
Density (20 °C)
Viscosity
Solvent
Flash Point
Value
Milky liquid
30–35%
0.93 g/ml
30 s (DIN 53211, 4 mm)
Organic solvents, MEK, Ethyl acetate, Cyclohexane
–10 °C
INSTRUCTIONS FOR USE
Suitable Materials ALU, PET, PS, PP, PVC, PLA, PAPER
Application Methods Rotogravure, Roller Coating, Semi-Flexo
Coating Weight 4–7 g/m² (Dry Substance)
Viscosity 15–30 s (DIN 53211, 4 mm)
Thinner Ethyl acetate, MEK, Ethanol < 4%
Drying 130–160 °C for 6–10 seconds
The optimal drying depends on factors such as machine speed, coating weight, temperature profile, solvent evaporation, air flow, and humidity. The residual solvent content should be regularly measured and monitored.
Sealing values N/15mm
AL / APET → N/15 mm: 12 (Brugger-HSG C 200°C, 1 sec, 460N, Tolerance ±2)
AL / PS → N/15 mm: 14 (Brugger-HSG C 200°C, 1 sec, 460N, Tolerance ±2)
AL / PP → N/15 mm: 14 (Brugger-HSG C 200°C, 1 sec, 460N, Tolerance ±2)
PET / PS → N/15 mm: 10 (Brugger-HSG C 200°C, 1 sec, 460N, Tolerance ±2)
PET / PP → N/15 mm: 10 (Brugger-HSG C 200°C, 1 sec, 460N, Tolerance ±2)
The specified values apply at 200 °C. Adhesion decreases as the temperature decreases.
The effective sealing range is between 180 °C and 205 °C.
Paper must be NC primed.
HYGIENE AND COMPLIANCE
The hygienic properties of the lacquer comply with the legal requirements of Regulation (EC) No. 1935/2004 of the European Parliament and of the Council on materials and articles intended to come into contact with food, as well as Regulation (EU) No. 10/2011 of the Commission on plastic materials and articles intended to come into contact with food.
WORK SAFETY
This is a highly flammable and irritating liquid product with a risk of ignition and explosion of vapors. Protect from open flames, electrical discharges, reducing and oxidizing agents, etc. The substance irritates the eyes, mucous membranes, and respiratory tract. For additional information, see the safety data sheets and declarations of conformity.
WASTE AND DISPOSAL INFORMATION
Must be disposed of as hazardous waste in accordance with official regulations. Suitable disposal method according to the EU Waste Framework Directive (2008/98/EC): D 10 Incineration on land. See safety data sheet.
STORAGE AND SHELF LIFE
Store in a cool, dry, and frost-free place. Protect from direct sunlight and temperatures above 30°C. Keep out of reach of children. Shelf life: 6 months in the unopened original packaging. For longer storage periods, check for suitability before use. Stir thoroughly with a dissolver before use.
Packaging Units
Metal Pail: → 30 kg
Steel Drums: → 180 kg
IBC Container: → 950 kg
This datasheet is provided solely as information and recommendation based on our experience. The application must be adapted to the respective operational conditions. No legal claims can be derived from it. © 2024 – All rights reserved TMS Stellar E.U, Industriestraße 3, A-6841 Mäder, Austria info@tms-stellar.com, www.tms-stellar.com
