HSL-1150P Heat Seal Lacquer
TECHNICAL DATA SHEET

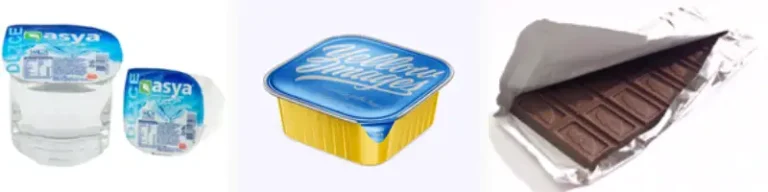

A solvent-based, flexible, universal heat seal lacquer developed for liquid and dry food packaging – HSL 1150-P can be applied directly to aluminum, PET, and paper films in a one-step process using rotogravure or roller coating. It ensures tight seals on aluminum, PET, and PS cups used for water, soft drinks, and dairy products. It is also suitable for packaging dry food products such as chocolate, cakes, and cookies.
PRODUCT DESCRIPTION
Stellar HSL-1150-P is a solvent-based heat seal lacquer specially formulated from a combination of polymers and additives. The product can be applied directly in a one-step coating process onto ALU, PET, and paper films. It ensures reliable sealing for APET and PS cups and is therefore versatile for liquid and dry food packaging.
Property
Appearance
Solid Content
Density (20 °C)
Viscosity
Solvent
Flash Point
Value
Opaque liquid
30–35%
0.95 g/ml
30 s (DIN 53211, 4 mm)
Organic solvents, MEK, ethyl acetate, cyclohexane
–10 °C
INSTRUCTIONS FOR USE
Suitable Materials ALU, PET, PS, PLA
Application Methods Rotogravure, Roller Application, Semiflexo
Application Rate 3–7 g/m² (dry content)
Viscosity 15–25 s (DIN 53211, 4 mm)
Thinner Ethyl acetate, MEK
Drying 130–160 °C for 5–10 seconds
Optimal drying depends on factors such as machine speed, lacquer application, temperature profile, evaporation, airflow, and humidity. The residual solvent content should be measured and checked regularly.
Sealing values N/15mm
AL / APET → N/15 mm: 9 (Brugger-HSG C 200°C, 1 s, 460 N, tolerance ±2)
AL / PS → N/15 mm: 11 (Brugger-HSG C 200°C, 1 s, 460 N, tolerance ±2)
AL / AL → N/15 mm: 15 (Brugger-HSG C 200°C, 1 s, 460 N, tolerance ±2)
PET / PS → N/15 mm: 10 (Brugger-HSG C 200°C, 1 s, 460 N, tolerance ±2)
The values above depend on the sealing temperature, and adhesion decreases at lower temperatures.
*Recommended for NC-coated paper surfaces.
HYGIENE AND COMPLIANCE
The hygienic properties of the HSL-1150 lacquer comply with the legal requirements of Regulation (EC) No. 1935/2004 of the European Parliament and of the Council on materials and articles intended to come into contact with food, as well as Regulation (EU) No. 10/2011 of the Commission on plastic materials and articles intended to come into contact with food.
WORK SAFETY
This is a highly flammable and irritating liquid product with a risk of ignition and explosion of vapors. Protect from open flames, electrical discharges, reducing and oxidizing agents, etc. The substance irritates the eyes, mucous membranes, and respiratory tract. For additional information, see the safety data sheets and declarations of conformity.
WASTE AND DISPOSAL INFORMATION
Must be disposed of in accordance with legal regulations regarding hazardous waste disposal. Suitable disposal method according to the EU Waste Framework Directive (2008/98/EC): D 10 Incineration on land. See safety data sheet.
STORAGE AND SHELF LIFE
Store in a cool, dry, and frost-free place. Protect from direct sunlight and temperatures above 30°C. Keep out of reach of children. Shelf life: 6 months in the unopened original packaging. For longer storage periods, check for suitability before use. Stir thoroughly with a dissolver before use.
PACKAGING UNITS
Metal Pail: → 30 kg
Steel Drums: → 180 kg
IBC Container: → 950 kg
This datasheet is provided solely as information and recommendation based on our experience. The application must be adapted to the respective operational conditions. No legal claims can be derived from it. © 2024 – All rights reserved TMS Stellar E.U, Industriestraße 3, A-6841 Mäder, Austria info@tms-stellar.com, www.tms-stellar.com
